cheap shea butter oil production machine

FOB Reference Price:Get Latest Price
$2,000.00 - $7,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
10-200TPD
Lead Time:
Quantity(Sets) 1 - 20 21 - 30 >30
Est. Time(days) 45 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Production Capacity:
98%-100%
Usage:
shea butter oil production machine
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China
Brand Name:
ZZ Penguin
Voltage:
220-380-440V
Power(W):
40kw/h
Dimension(L*W*H):
6m*4m*2m
Weight:
300kg
Certification:
CE&ISO9001
Name:
Oil Press
Raw material:
shea butter,soybean,peanut,sunflower,etc
Function:
Making Edible Oil
Application:
Screw Oil Expeller
Advantage:
Energy Saving
Material:
Stainess Steel
Product name:
Screw Press Oil Expelle
Color:
Clients' Requirements shea butter oil production machine
Warranty:
12 Months shea butter oil production machine
Item:
Edible Oil Press shea butter oil production machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Year we will provide as much as we can
Packaging & Delivery
Packaging Details
40HQ, 40OT,40FR, or bulk cargo ship.
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 20 21 - 30 >30
Est. Time(days) 45 45 To be negotiated
Product Description

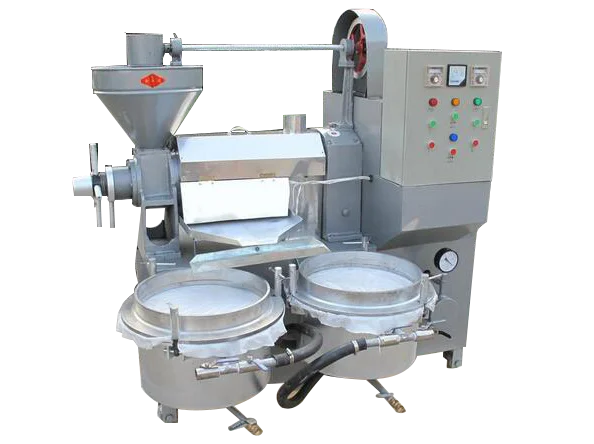

Introduction of cheap shea butter oil production machine

   New generation screw oil press machine is screw-driven oil making machine that used to extract oil from seeds and kernels for edible purposes.CRS series oil press machine is an advanced oil seed processing machine,characterized by high oil output rate,cold& hot press in one machine and one-time squeeze.
The oil press machine can be used to process various oil seeds, such as rape seeds, peanut soybean,sesame,sunflower seed, copra, vegetable seeds.

Technical parameters of cheap shea butter oil production machine

Model
6YL-80
6YL-100
6YL-120
6YL-130
6YL-160
Speed of press screw(r/min)
30-40
30-40
30-40
28-40
28-40
Boundary dimension(mm)
1650*1150*1750
1900*1300*1850
2200*1650*2100
2300*1600*2100
2400*1700*2100
Capacity(kg/h)
80-150
150-250
200-300
300-400
400-600
Heater(kw)
2
3
3.3
3.8
4
Residual oil rate
6-7%
6-7%
6-7%
6-7%
6-7%
Weight(kg)
680
870
1280
1420
1600

Operating principle:

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw's rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elasticity, resulting in high oil.

The squeezable material of cheap shea butter oil production machine

Raw Material
Capacity(kg/hr)
Output Rate(%)
Cake Residual
Rape seeds
Hot pressing
150-170
30-38
7.5-8
Cold pressing
75-95
28-35
Peanut
Hot pressing
150-185
35-45
7
Cold pressing
65-95
32-40
Soybean
Hot pressing
135-160
10-16
6.5-7
Cold pressing
70-105
8-14
Sesame
Hot pressing
150-185
44-47
6.5-7.5
Cotton seeds
Cold pressing
95-105
10-14
5.5-8.5

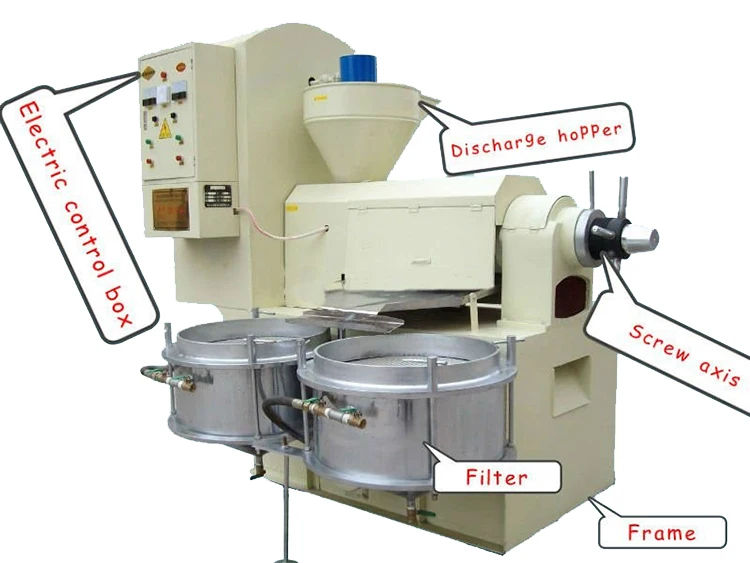

Various parts of cheap shea butter oil production machine

(1) Electric control box:Fully automatic control of the machine saves manpower and efficiency.
(2) Discharge hopper:Material enters from here.
(3) Screw axis:Press the material to extract the oil from the material.
(4) Filter:Filter out impurities in the oil to improve the quality of the oil.

(5) Frame:Support the machine to ensure that the machine works properly.

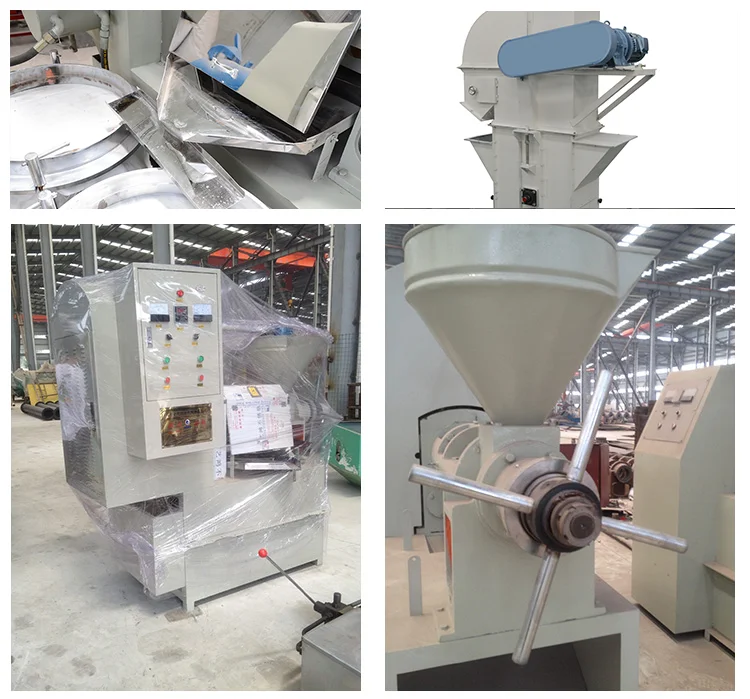

More pictures of cheap shea butter oil production machine

Company

Zhengzhou Qi'E Grain&Oil Machine Co Ltd is located in Zhengzhou City, Henan Province, China, and has strong strength in grease machines.
1. more than 30 years of experience

The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.top production team

The equipment will be inspected by special personnel before transportation. The transportation and packaging will be packaged in international standards. If you have special packaging requirements, please contact our business manager, we will give you the most suitable solution.
3.high quality products

in production process, Our sales manager will send you a production progress picture or video every day, so that you can know the production progress of the product in real time, and we accept L/C payment.

Packing & Delivery

   Any special requirement of shipping, please talk with us, we will help you to solve the problems.
if the amount of goods to be deliverd is relatitively small ,the goods will be packaged in the form of export wooden boxes .if the goods are shipped in the large quantities,the goods will be directly loaded into the containers and cut and reinforced to prevent the goods from colliding.

Our sevirces

Pre-sale services:

1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients;

3)Detailed technical assessment;

4)Design of process and equipment layout.

After-sale services

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;

4)Supplying spare parts with cost.

FAQ

Q:Are you a manufacturer or a foreign trade company?

A:We are an industry and trade integrated company.

Q:What if I don't operate this product?

A:Our machine operation video and manual are for your reference. If necessary, we will send engineers to train for you personally.

Q:Can you provide more information about production and quote the best price?

A:Of course, but first we have to confirm your needs. According to your needs, we will choose the right product for your reference. When we determine one or several products, we will quote you the best price.

Q:How to place an order?

A:First send us the enquiry below, including the device name, daily production, work hours, main processing materials, etc., then our sales manager will send you the information for your reference, the machine and the price will be determined after the sales manager will Help you place an order.

Q:How long does it take to receive my product?

A:It is not yet possible to determine the time because the shipping distance and production cycle are uncertain. Our engineers set the production cycle based on the production status of the grease equipment or grease project and the number of equipment required, and our business manager will recommend the appropriate transportation route for you to ensure safe and fast delivery of the goods.

Q:How is the quality of your products guaranteed?

A:After the completion of production, our quality inspection can not test the product. If you need it, we can provide third-party testing service to ensure the stable production of the equipment.
