palm oil expeller,palm oil presser,palm oil mill equipment malaysia

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
6YL-100
Power(W):
7.5
Report Suspicious Activity
Overview
Product Hightlights
Warranty Production Capacity Usage
1 Year 100% Olive Oil
Specifications
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China (Mainland)
Brand Name:
Qi'E
Voltage:
380V
Dimension(L*W*H):
1950x1300x1900
Weight:
950 kg
Certification:
ISO9001
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Screw speed:
30-40 r/min
Gear ratio:
15/40x15/55=1:9.78
Dimension:
1950x1300x1900
Productivity:
150-250kg/h
Vacuum pump:
Y90S-4-1.1Kw
Heater:
3Kw
Authentication:
ISO9001
Name:
Qi'E
Power:
Y160M-6-7.5KW
Package:
wooden cases
Supply Ability
Supply Ability:
60 Set/Sets per Month as required
Packaging & Delivery
Packaging Details
International Export Standards, usually wooden cases
Port
Qingdao or the nearest port

palm oil expeller,palm oil presser,palm oil mill equipment malaysia



Product Description

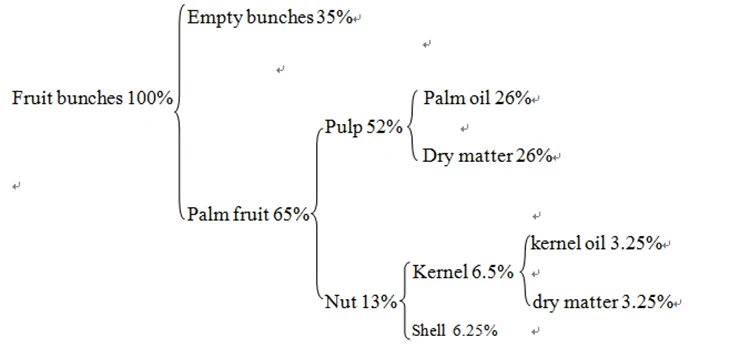

Material For Oil Expeller







Main Technical Parameters For Oil Expeller



Model 6YL-80 6YL-100 6YL-120 6YL-130 6YL-160
Screw speed 30-45r/min 30-40 r/min 30-40 r/min28-40 r/min28-40 r/min
gear ratio 14/42x19/57=1:6.63 15/40x15/55=1:9.78 15/34x15/55=1:9.5915/38x19/48=1:7.38 15/38x15/52=1:8.78
Dimension  1650x1150x1750 1950x1300x19002050x1350x20002200x1600x2150 2500x1600x2500
Productivity  80-150kg/h 150-250kg/h200-300kg/h250-400kg/h450-600kg/h
Power  Y160L-6-5.5KW Y160M-6-7.5KWY160L-6-11KWY180L-6-15KWY200L-6-18.5KW
Vacuum pump Y90S-4-0.55KW Y90S-4-1.1KWY100L1-4-1.5KWY100L1-4-2.2KW Y100L1-4-2.2KW
 Heater  2KW 3KW 3.3KW 3.8KW 4KW



The above parameters is according to oil material that is refined, separated, flaked, steamed and fired, and the auxiliary equipments are complete with reasonable techniques.



Operating Principle For Oil Expeller

1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.

2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.

3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.

4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.

5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.

6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.



6YL series  spiral oil press machine is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.





Oil Expeller Machinery characters:

 Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.





Why choose ZHENGZHOU QIE GRAIN&OIL MACHINERY CO.LTD?

1.Our company has been set up since 1982, It has been awarded the "The quality-star enterprise of China", we have more than 30-yeat history in the manufacturing of oil machine.

2.Our factoru is also a group enterprise integrating  scientific research, manufacturing, sales as one.

3.We have cooperated with Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.

4.We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.

5.We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries.



Company Information

Zhengzhou Qi'E Grain&Oil Machine Co.,Ltd has applied the automatic control system with advancedness, security, reliability into the pretreatment, extraction, refining and fractionation in large oil plants. For its application in automatic control system, it can control the production in the entire workshop and monitor the operational status of each device by controlling the computer terminals in the room. One person only can operate the entire workshop, with efficient production management. It has reduced the production cost greatly and improved the management efficiency.
