black seed oil making machine mill and black seed oil processing machinery

FOB Reference Price:Get Latest Price
$2,000.00 - $499,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QI'E
Power(W):
30KW
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 40 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
98%-100%
Usage:
Black seed Oil
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Place of Origin:
Henan, China (Mainland)
Brand Name:
QI'E
Voltage:
220V/380V/440V
Dimension(L*W*H):
20*10*10mm
Weight:
500TON
Certification:
CE/ISO9001/BV
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Keyword:
black seed oil making machine
usage:
edible oil press
Raw materials suitable:
black seed,peanut,sunflower,soybean,walnut,etc
advantage:
save energy
Application:
Oil Production Line
Function:
oil making machine
Machinery type:
Screw Seed Oil Extraction Machine
customized:
accept
Processing Types:
Hot Pressing Oil Machine
Quality:
Top Level black seed oil making machine mill
Supply Ability
Supply Ability:
45 Set/Sets per Year black seed oil making machine mill
Packaging & Delivery
Packaging Details
1.Packed forblack seed oil making machine mill by the protect film inner, water-repellent plastic outside.
2.The wood packing is necessary if send by less than a container.
3.Generally, shipped by high cubic container,such as 20 feet,40 feet.
4.Based On this condition,we should make sure it is in good condition when arrived destination.
5.According to the customer requirement
Port
Qing dao/shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 40 45 To be negotiated
Product Description

A brief introduction to oil production line

1.The pretreatment process of black seed oil making machine mill
The oil material pretreatment process includes the cleaning section,breaking section,flaking section ,softening section and oil pressing section.
Cleaning:remove most impurities from the material, such as stones, dirt, etc., to prepare for the next crushing process, improve crushing efficiency and extend machine life.
Crushing:after the crushing proces
s, the material is broken into small pieces, which improves the efficiency of the material being pressed.
Softening process:Increase the moisture content and temperature of the material, and ultimately increase the final oil output of the material.
Flaking process:the material is pressed into pieces in this process to increase the amount of oil discharged from the material.
Oil press:the treated oil enters the squeegee from the hopper. Under the condition of high pressure, the embryo is continuously pushed inward by the screw press, and is pressed to finally produce oil.

Residual oil in cake
≤5%
Handling capacity
500kg-50tons/h
Crude oil moisture and volatile matter
≤ 0.30%
Power consumption
≤ 15KWh/T
Steam consumption
≤120Kg/T (0.8MPa)
Mechnical impurities
≤ 0.3% (adjustable)
Moisture in crude oil
≤ 0.2% (qualified detonated experiment

2.The extraction process of black seed oil making machine mill

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.
(4) The mix oi
l from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

Extraction→DTDC→Evaporation→Stripper→Crude oil

Extraction:The solvent enters the material and extracts the oil inside the material under a certain temperature and pressure.
DTDC:It consists of seven layers. In the first three layers, the wet mash is heated and heated by indirect steam to pre-dissolve and remove a large amount of solvent. In the next two layers, stripping is carried out under the action of direct steam, the sixth layer is dried with hot air, and the seventh layer is cooled.
Evaporation:The difference between the boiling point of the oil and the solvent is used to separate the solvent and the oil.
Stripper:The separated solvent can be dissolved in the selected paraffin or solvent and recovered.

Moisture of extraction material
5-8%
temperature of extraction material
50-55°C
oil content of extraction material
14-18%
thickness of extraction cake
less than 13mm
powder porosity of extraction material
less than 15% (30 mesh)
solvent
national standard No. 6 solvent oil
volume of supplement water
1-2m/t raw material

3.The refining process of black seed oil making machine mill

A general term for a series of processes for removing solid impurities, free fatty acids, phospholipids, gums, waxes, pigments, odors, etc. contained in vegetable oils. Enhancing the nutritional value of edible

oils has great benefits for human health.

(1)Deacidification and degumming

This step is mainly to remove the excess acid in the grease. If the peptized impurities of the oil are not removed, the excessive emulsification will occur during the alkali refining process, so that the oil soap can not be separated well, affecting the refining and Oil quality.

(2)Decolorization

The decolorization process greatly enhances the oxidation stability of the oil, and this process also has a great influence on the subsequent deodorization process of the oil. In this process, the oxide is completely removed, and the trace amount of metal, residual soap and residual fat are removed in a maximum amount, and a part of the pigment is moderately removed.

(3)Deodorization

Deodorization of oil and fat not only removes odor substances in oil, but also improves the smoke point of oils and fats, improves the flavor of edible oils, and effectively improves the safety of oils and fats.

(4)Filteration

Miscella mixed by oil and clay from bleaching tower is pumped into decolorizing filter, then enters into fine filter, in which clay and fixed impurities are blocked.
(5)Dewaxing process
Bleached sunflowerseed oil enter into crystallizing tank through heat exchanger and begin the cooling crystallization proces,this process is controlled by the computer through the parameters preestablished,the computer controls temperature of circulating water in the frozen coil to comand cooling speed of the oil,thereby receive the best crystal result.

Advantage

1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case, so as to ensure good extraction effect;
2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level, which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal, improve the miscella concentration and save energy by reducing the evaporation capacity.
5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.
6. Specially suitable for the extraction of various pre-pressed meals.

Company

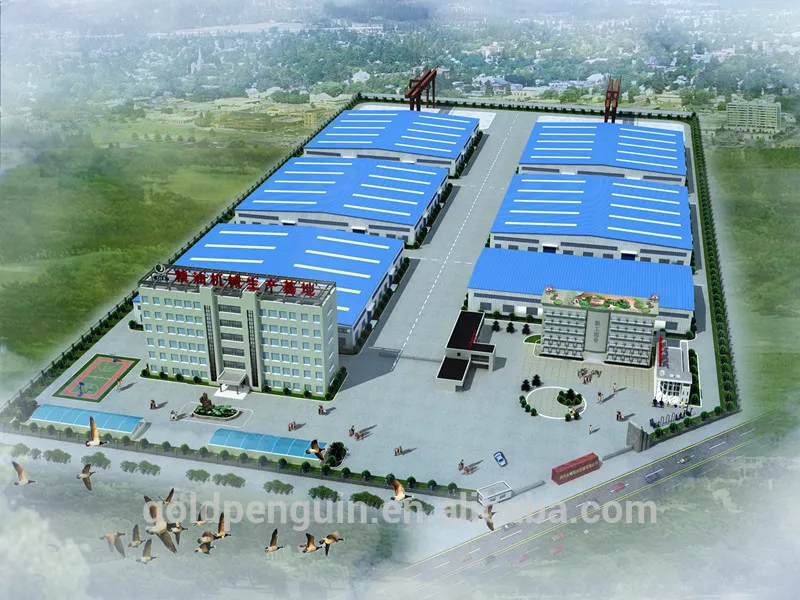

Zhengzhou Qi'E Grain&Oil Machine Co Ltd is located in Zhengzhou City, Henan Province, China, and has strong strength in grease machines.
1. More than 30 years of experience

The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team

The equipment will be inspected by special personnel before transportation. The transportation and packaging will be packaged in international standards. If you have special packaging requirements, please contact our business manager, we will give you the most suitable solution.
3.High quality products

in production process, Our sales manager will send you a production progress picture or video every day, so that you can know the production progress of the product in real time, and we accept L/C payment.

Packing & Delivery

   Any special requirement of shipping, please talk with us, we will help you to solve the problems.
if the amount of goods to be deliverd is relatitively small ,the goods will be packaged in the form of export wooden boxes .if the goods are shipped in the large quantities,the goods will be directly loaded into the containers and cut and reinforced to prevent the goods from colliding.

Our sevirces

Pre-sale services:

1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients;

3)Detailed technical assessment;

4)Design of process and equipment layout.

After-sale services

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;

4)Supplying spare parts with cost.

FAQ

Q:Are you a manufacturer or a foreign trade company?

A:We are an industry and trade integrated company.

Q:What if I don't operate this product?

A:Our machine operation video and manual are for your reference. If necessary, we will send engineers to train for you personally.

Q:Can you provide more information about production and quote the best price?

A:Of course, but first we have to confirm your needs. According to your needs, we will choose the right product for your reference. When we determine one or several products, we will quote you the best price.

Q:How to place an order?

A:First send us the enquiry below, including the device name, daily production, work hours, main processing materials, etc., then our sales manager will send you the information for your reference, the machine and the price will be determined after the sales manager will Help you place an order.

Q:How long does it take to receive my product?

A:It is not yet possible to determine the time because the shipping distance and production cycle are uncertain. Our engineers set the production cycle based on the production status of the grease equipment or grease project and the number of equipment required, and our business manager will recommend the appropriate transportation route for you to ensure safe and fast delivery of the goods.

Q:How is the quality of your products guaranteed?

A:After the completion of production, our quality inspection can not test the product. If you need it, we can provide third-party testing service to ensure the stable production of the equipment.
